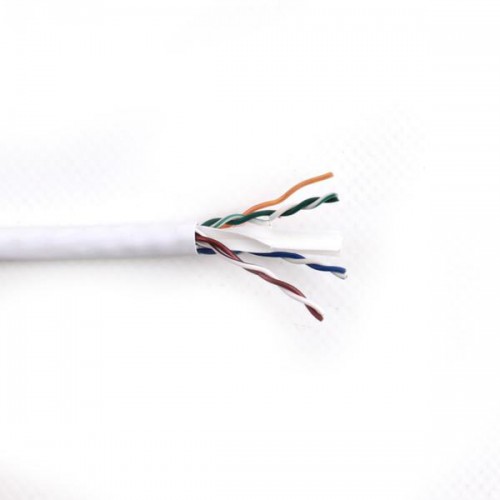

Ubiquiti UC-C6-CMR - Cat. 6 Indoor Ethernet Cable, 20 m length

Ubiquiti UC-C6-CMR - Category 6 Indoor Ethernet Cable, 65.5' (20 m) length

• Speeds of up to 10G Ethernet
• 23 AWG solid copper conductor pairs
• Anti-crosstalk divider for improved pair isolation

Overview
Ubiquiti Networks introduces the UniFi(R) Category 6 Indoor Ethernet Cable for your high-speed UniFi and general indoor network deployments.

Performance
Available in lengths of 65.5 ft (20 m), UniFi Cable is Category 6 UTP (Unshielded Twisted Pair) cabling that supports speeds of up to 10G* Ethernet. It uses 23 AWG solid copper conductor pairs and an anti-crosstalk divider which improves pair isolation.

Environment
CMR (Communications Multipurpose cable, Riser) cabling is flame-retardant and can be run vertically between floors in non-plenum areas. UniFi Cable is CMR fire-rated (also called riser-rated), making it suitable for inwall and riser cabling applications.

• Cable category: 6
• Ethernet support: Up to 10 Gbps
• Conductor type: Bare solid copper
• Conductor wire gauge: 23 AWG
• Conductor diameter: 0.575 mm, nominal
• Insulation type: FR-PE
• Insulation thickness: 0.2 mm, nominal
• Insulation diameter: 1.0 +/- 0.1 mm
• Anti-crosstalk divider type: FR-PE
• Anti-crosstalk divider: 5.0 x 0.5 mm, nominal
• Rip cord: Yes
• Jacket material: PVC
• Jacket thickness: 0.5 mm, nominal
• Jacket outer diameter: 6.0 +/- 0.3 mm
• Jacket color: White
• Reference Standard: ISO/IEC 11801, TIA/EIA568B.2

* We recommend using Category 6 Ethernet connectors to optimize performance and accommodate the size of the 23 AWG conductors.
