UBNT UAP-AC-IW-PRO - 802.11AC Dual-Radio Access Point

Ubiquiti Networks UAP-AC-IW-PRO - 802.11AC Dual-Radio Access Point

• Unlimited indoor AP scalability in a unified management system
• Breakthrough speeds up to 1300 Mbps in the 5 GHz band
• Intuitive UniFi Controller software

UniFi(R) is the revolutionary Wi-Fi system that combines enterprise
performance, unlimited scalability, and a central management controller. UniFi 802.11AC dualradio access points (APs) have a refined
industrial design and can be easily installed using the included
mounting hardware.

Easily accessible through any standard web browser, the UniFi Controller software is a powerful software engine ideal for highdensity client
deployments requiring low latency and high uptime performance.

Use the UniFi Controller software to quickly configure and administer an enterprise WiFi network – no special training required. RF map and
performance features, real-time status, automatic UAP device detection, and advanced security options are all seamlessly integrated.

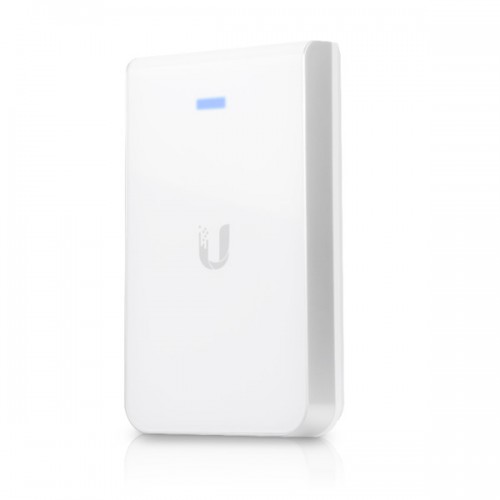

The UniFi AC In-Wall Pro AP transforms an Ethernet wall connection into a simultaneous, dual-band 802.11AC Wi-Fi access point with 3x3 MIMO
technology and 50% higher radio rates than the UAPACIW. The UniFi AC
InWall Pro features two Gigabit Ethernet ports, one of which delivers
PoE to power and connect an 802.3af device to the network. It is
available in single and fivepacks*.

* We recommend powering the UniFi AC InWall Pro APs with the UniFi PoE switch, as PoE adapters are not included.

• Dimensions: 139.7 x 86.7 x 25.75 mm (5.5 x 3.41 x 1.01")
• Weight: 210 g (7.41 oz)
• Networking Interface: (3) 10/100/1000 Ethernet ports
• Buttons: Reset
• Power method: 802.3at PoE+ supported
• Power supply: UniFi PoE switch (not included)
• Power save: Supported
• PoE Out: 48 V passthrough (pins 1, 2+; 3, 6)
• Maximum power consumption: 10 W
• With PoE passthrough: 22 W**
• Maximum TX power:
  • 2.4 GHz: 22 dBm
  • 5 GHz: 22 dBm
• Antennas: (1) dualband antenna, singlepolarity
  • 2.4 GHz: 5 dBi
  • 5 GHz: 6.5 dBi
• Wi-Fi standards: 802.11 a/b/g/n/ac
• Wireless security: WEP, WPAPSK, WPAEnterprise (WPA/WPA2, TKIP/AES)
• BSSID: Up to four per radio
• Mounting: 1gang electrical wall box (not included)
• Operating temperature: 10°C to 50°C (14°F to 122°F)
• Operating humidity: 5 to 95% non-condensing
• Certifications: CE, FCC, IC

**Requires 802.3at PoE+ switch
